SUPERSTAR GEN II

660W INDOOR LED

SUPERSTAR GEN II

660W INDOOR LED

The World’s Top-Selling High PPF/Efficacy Heavy-Duty Full Spectrum 8-bar Indoor LED Grow Light Fixture for All Stages

click to enlarge

The World’s Top-Selling High PPF/Efficacy Heavy-Duty Full Spectrum 8-bar Indoor LED Grow Light Fixture for All Stages

KEY FEATURES
  • Full Spectrum LED light fixture for all stages
  • Daisy-Chain up to 6 units
  • Dimmable down to 0%
  • Philips Lumileds & Samsung LED Chips
  • Offers PPF of at least 1820 μmols/s, with a lighting efficacy of above 2.8μmol/J
  • Certified with ETL  and DLC Listed (Megaphoton)
  • 5 year warranty on ballast
  • 50,000 hour warranty on LEDs
MEASUREMENTS

Dimensions: 46.7in x 43.3in x 5.5in (LxWxH)


Weight: 34 lbs

DOWNLOADABLE PDF FILES

Model Number: ML-TYU66006

Input Voltage: 110/208/220/240/277V

Input Current: 6.0/3.17/3.0/2.75/2.38A

Input Frequency: 50 / 60Hz

Power consumption: 660W

Power factor: >0.90

Ingress protection: IP66

Dimming: 0-10V Controllable

Dim Switch: 20%/40%/60% /80%/100%/Ext

Max Coverage at 24" : 6X6ft

Core Coverage at 24": 5X5ft

Operational Phase: Bloom phase

Model Number: ML-TYN66009

  • Input Voltage: 240/277/347/480V
  • Input Current: 2.75/2.38/1.90/1.38A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 660W
  • Power factor: >0.9
  • Ingress protection: IP66
  • Dimming: 0-10V Controllable
  • Max Coverage at 24" : 6X6ft
  • Core Coverage at 24": 5X5ft
  • Operational Phase: Bloom phase

Model Number: ML-TYN66011

  • Input Voltage: 208/220/240/277/347/480V
  • Input Current: 317/3.0/2.75/2.38/1.90/1.38A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 660W
  • Power factor: >0.9
  • PPF: 1780μmol-s / m2
  • Efficacy: >2.7μmol-s/m2
  • Ingress protection: IP66
  • Dimming: 0-10V Controllable
  • Max Coverage at 24" : 6X6ft
  • Core Coverage at 24": 5X5ft
  • Operational Phase: Veg phase

click to enlarge

Carton includes:

 Model Number: ML-TYU66006 &                                                                   ML-TYN66011(ELV-Vege)
  • 1 All-in-One 660W LED Grow Light
  • 1 6ft, 15amp Power Cord with Pigtail
  • 1 Hanging Kit
  • 1 ML16 Diasy-Chain 4ft Cable
  • 1 ML16 Controller 6ft Cable
  • 1 User Manual
Model Number: ML-TYU66009
  • 1st Carton: 2 LED Drivers
  • 2nd Carton:  2  8-Bar LED Lights
  • 1 6ft, 15amp Power Cord with Pigtail
  • 1 Hanging Kit
  • 2 ML16 Diasy-Chain 4ft Cables
  • 2 ML16 Controller 6ft Cables
  • 1 User Manual

SUPERSTAR S 630W LED

Two Line Description. Two Line Description. Two Line Description. Two Line Description. Two Line Description. Two Line Description.

KEY FEATURES



  • Full Specturm LED light fixture for all stages
  • Efficay up to 3.1 umol/j
  • Daisy-Chain up to 6 units
  • Dimmable down to 0%
  • Osran LED Chips
  • Offers PPF up to 1950 μmols/s
  • Certified with ETL
  • 5 year warranty on ballast
  • 50,000 hour warranty on LEDs



MEASUREMENTS

Dimensions: 43in x  43in x 1.2in (LxWxH)


Weight:  LED Lamps: 21.0 lbs / LED Driver: 9 lbs

DOWNLOADABLE PDF FILES

Superstar S 630W LED

Two Line Description. Two Line Description. Two Line Description. Two Line Description. Two Line Description. Two Line Description.

click to enlarge

ZSC-ID-BZ630-HV01-TA

  • Input Voltage: 208/220/240/277/347/480V
  • Input Current: 3.01/2.86/2.63/2.28/1.82/1.31A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 630W
  • Power factor: >0.9
  • Ingress protection: IP66
  • Dimming: 0-10V
  • Max Coverage at 24" : 6X6ft
  • Core Coverage at 24": 5X5ft
  • Operational Phase: Bloom phase

PPFD & Light Layouts

SUPERSTAR VEGA

330W VEG LED

SUPERSTAR VEGA

330W VEG LED

The World’s Most Powerful Indoor LED Grow Light Fixture for Veg Made in a Lightweight, Slimline, Foldable, All-Metal Frame.

click to enlarge

The World’s Most Powerful Indoor LED Grow Light Fixture for Veg Made in a Lightweight, Slimline, Foldable, All-Metal Frame.

KEY FEATURES
  • Full Spectrum LED light fixture for veg stage
  • Daisy-Chain up to 12 units
  • Dimmable down to 0%
  • Osram LED chips
  • PPF 930 μmols/s
  • Lighting efficacy of above 2.8 μmol/J
  • Certified with ETL and DLC Listed
  • 5 year warranty on ballast
  • 50,000 hours warranty on LEDs


MEASUREMENTS

Dimensions: 43in x 43in x 1.2in (LxWxH)


Weight: LED Lamps: 14.0 lbs / LED Driver: 7 lbs

DOWNLOADABLE PDF FILES

ZSC-ID-BZ330-SV01-BO

  • Input Voltage: 110/208/220/240/277V
  • Input Current: 3.0/1.59/1.5/1.38/1.19A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 335W
  • Power factor: >0.9
  • Ingress protection: IP66
  • Dimming: 0-10V
  • Max Coverage at 24" : 5X5ft
  • Core Coverage at 24": 4X4ft
  • Operational Phase: Veg phase



ZSC-ID-BZ330-HV01-TA

Input Voltage: 220/240/277/347/480V

Input Current: 1.5/1.38/1.19/0.95/0.69A

Input Frequency: 50 / 60Hz

Power consumption: 335W

Power factor: >0.9

Ingress protection: IP66

Dimming: 0-10V

Max Coverage at 24" : 5X5ft

Core Coverage at 24": 4X4ft

Operational Phase: Veg phase

Item Link

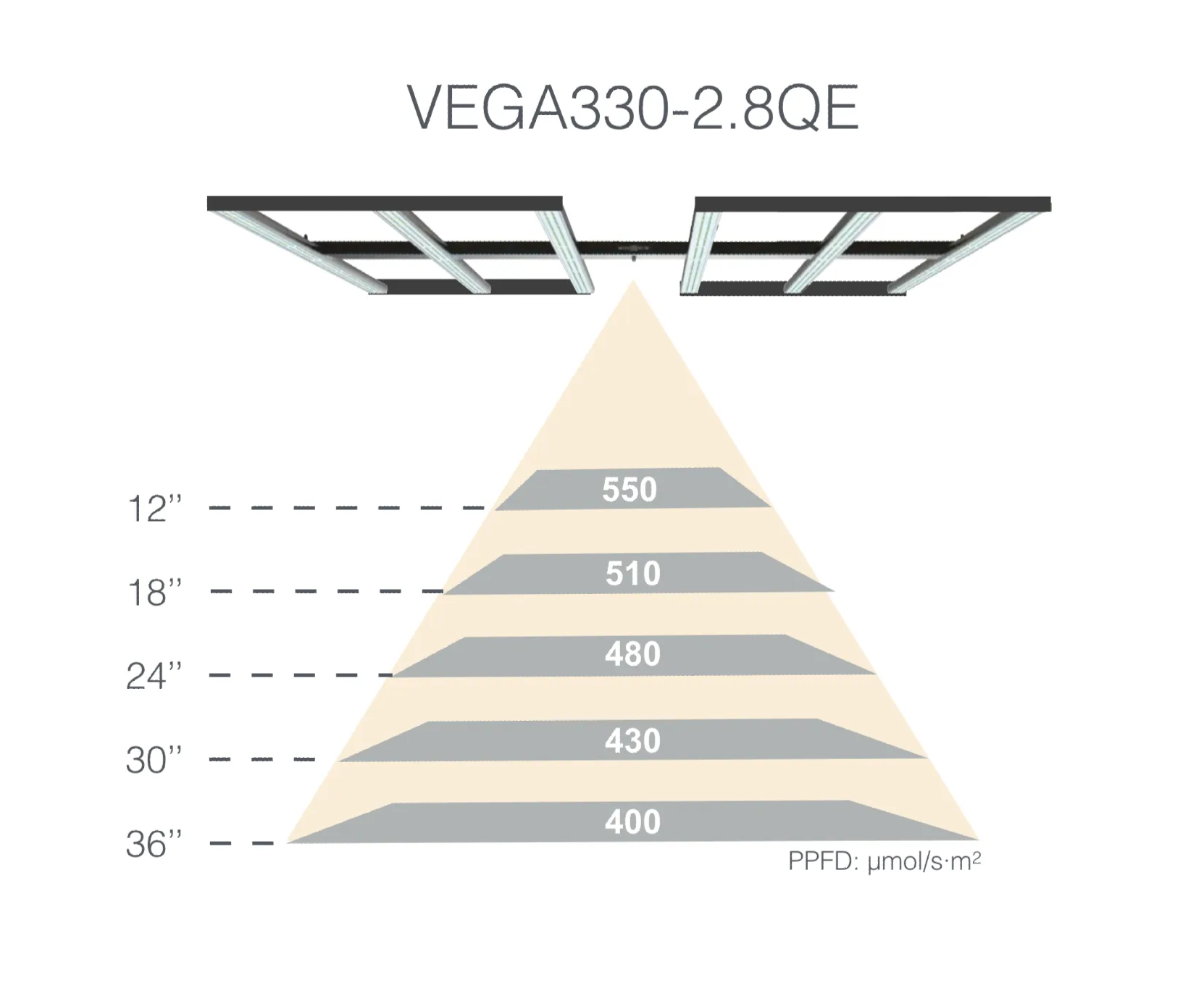

PPFD & Light Layouts
PPFD Layout
Light Layout

OUMUA  SE630

& HE600

GREENHOUSE LEDs

The World’s Highest PPF (1900 umol/s) and Efficacy up to 3.0 umol/J Greenhouse LED Grow Light Fixture

KEY FEATURES
OUMUA-SE630
  • Full Spectrum LED light fixture for all stages
  • Efficacy 3.0μmol-s/m Plus
  • PPF(380-780nm) up to 1900umol-s/m2
  • Osram & Samsung LED Chips
  • Daisy-Chain Up to 6 units
  • Dimmable / Controllable
  • Certified with ETL
OUMUA-HE600
  • Full Spectrum light fixture for all stages
  • Efficacy 2.8μmol-s/m Plus
  • PPF(380-780nm) up to 1680umol-s/m2
  • Osram & Samsung LED Chips
  • Daisy-Chain Up to 6 units
  • Dimmable / Controllable
  • Certified with ETL
MEASUREMENTS:

Dimensions: 48in x 5in x 5in (LxWxH)


Weight: 20.0 lbs

DOWNLOADABLE PDF FILES

OUMUA  SE630

& HE600

GREENHOUSE LEDs

The World’s Highest PPF (1900 umol/s) and Efficacy up to 3.0 umol/J Greenhouse LED Grow Light Fixture

click to enlarge

Model Number: ZSC-CP630-HV02-TA

  • Input Voltage: 208/220/240/277/347/480V
  • Input Current: 3.03/2.86/2.63/2.28/1.82/1.32A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 630W
  • Power factor: >0.95
  • Beam Angle: 120 Degree
  • Ingress protection: IP66
  • Lifespan: L90:>50,000hrs
  • Warranty: 5 years/50,000hrs
  • Dimming: 0-10V

Model Number:ZSC-GH-CP600-HV01-TO

  • Input Voltage: 208/220/240/277/347/480V
  • Input Current: 2.88/2.73/2.50/2.17/1.73/1.25A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 630W
  • Power factor: >0.95
  • Beam Angle: 120 Degree
  • Ingress protection: IP66
  • Lifespan: L90:>50,000hrs
  • Warranty: 5 years/50,000hrs
  • Dimming: 0-10V

OUMUA 630W
OUMUA 600W
  630W PPFD Layout
600W PPFD Layout

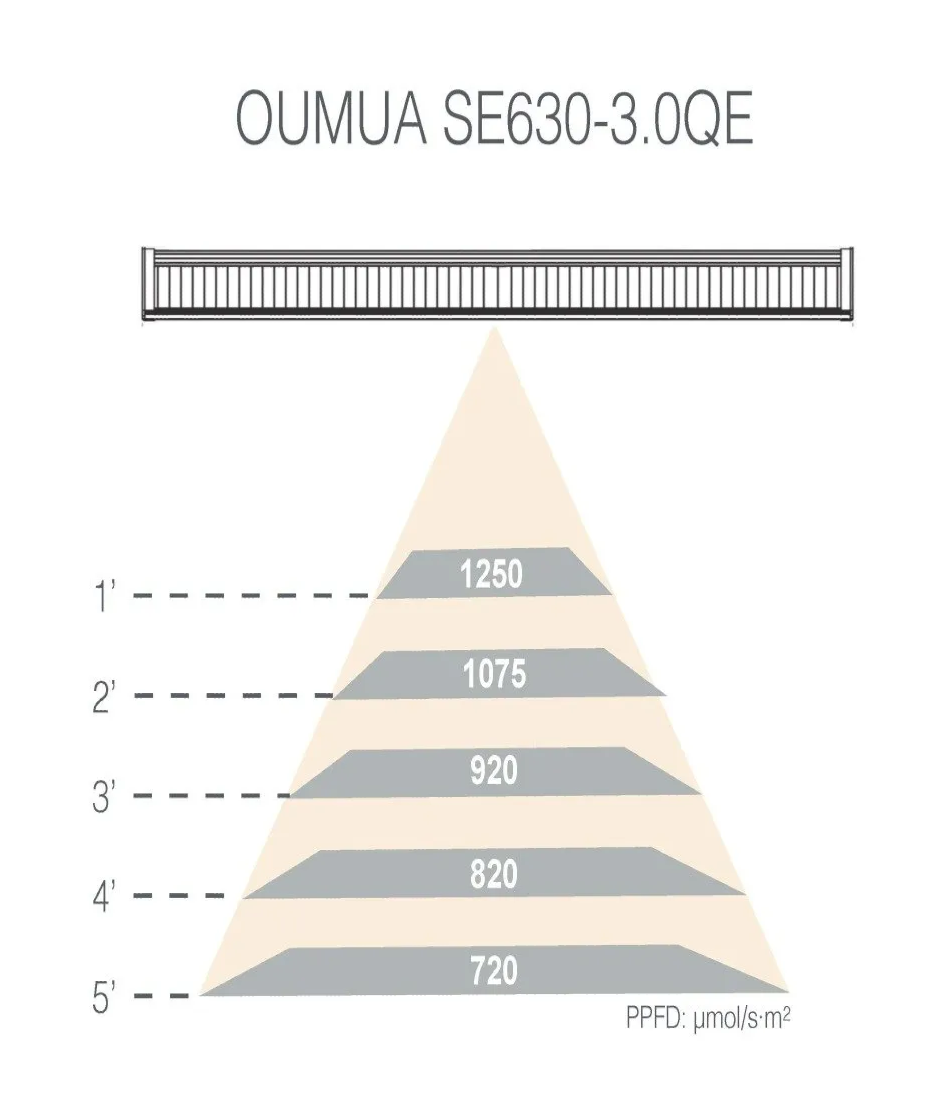

630W Light Layout 2'

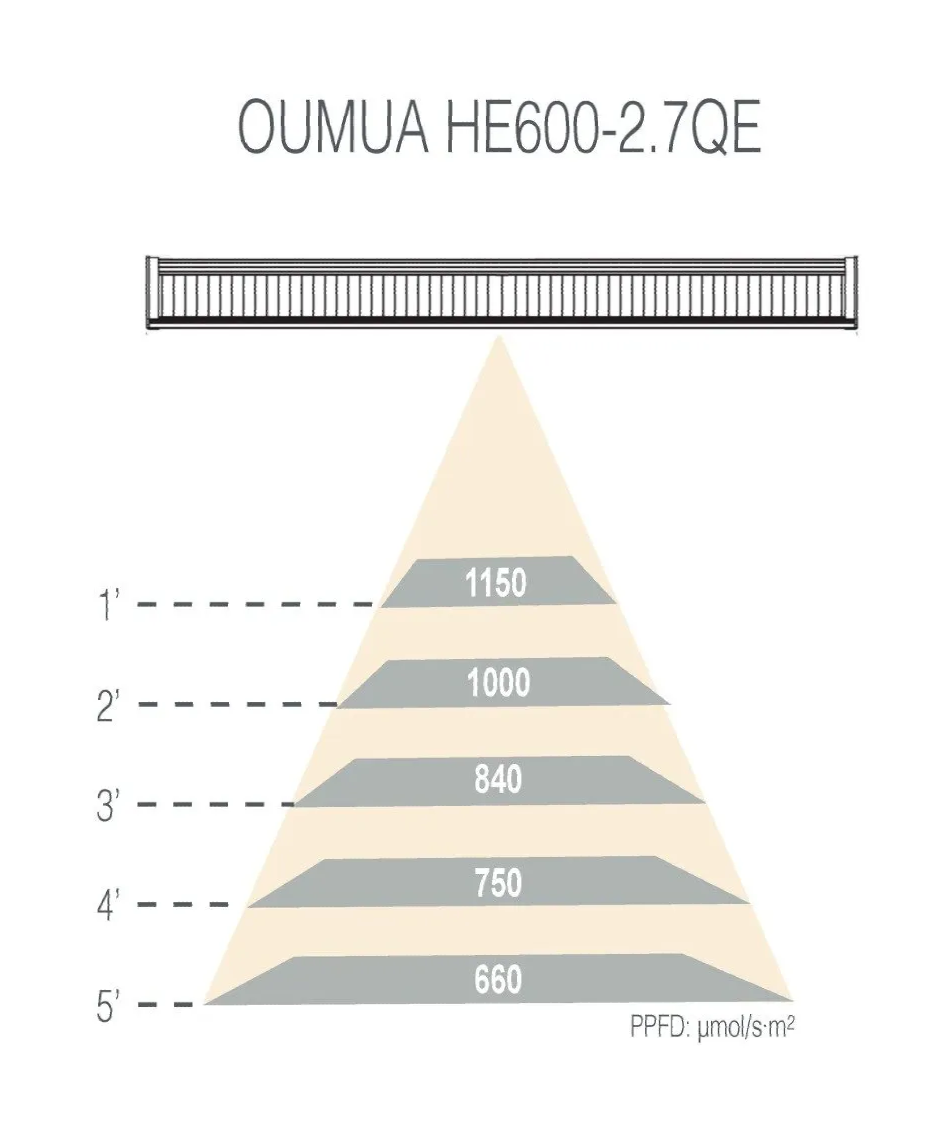

600W Light Layout 2'
630W Light Layout 4'
600W Light Layout 4'

TURBO BOOST 100W FAR RED INTERLIGHT LED

TURBO BOOST 100W FAR RED INTERLIGHT LED

The World’s  Only Far Red Spectrum Interlight LED for Sun Up / Sun Down and Late Stage Flower State Lighting.

click to enlarge

The World’s  Only Far Red Spectrum Interlight LED for Sun Up / Sun Down and Late Stage Flower State Lighting.

KEY FEATURES
  • Highest efficacy interlight LED at 3.0 umol/s
  • Light Output: 300 umol/j
  • Highest efficiency output
  • Operational Phase: Grow and Bloom phase
  • Wieland quick plug
  • OSRAM LED Chip
  • CE/ETL/CSA
MEASUREMENTS

Dimensions: 100in x 8.86in x 4.72in (LxWxH)


Weight: 10.14 lbs

Model Number: ML-IXR10000

  • Input Voltage: 208/220/240/277/347V
  • Input Current: 0.48/0.46/0.42/0.36/0.29A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 100W
  • Power factor: >0.90
  • Beam Angle: 120 Degree
  • Ingress protection: IP66
  • Lifespan: 50,000hrs
  • Warranty: 3 years

Light Spectrum

STAR T8 18W

MULTI-TIER CLONE LED

The World's Highest Quality 18W T8 Clone LED for Multilayer Clone Applications

KEY FEATURES
  • Highest quality aluminum housing
  • Highest efficacy clone LED at 2.2 umol/s
  • Light Output: 39.6 umol/j
  • Daisy-chain connection
  • Certified with CE & ETL


MEASUREMENTS

Dimensions: 48in x 1.2in x 1.3in (LxWxH)


Weight: 4.0 lbs

DOWNLOADABLE PDF FILES

STAR T8 18W

MULTI-TIER CLONE LED

The World's Highest Quality 18W T8 Clone LED for Multilayer Clone Applications

click to enlarge

Model Number: ML-MMS01800

  • Input Voltage: 110/208/220/240V
  • Input Current: 0.16/0.087/0.082/0.075A
  • Input Frequency: 50 / 60Hz
  • Power consumption: 18W
  • Power factor: >0.95
  • Beam Angle: 120 Degree
  • Ingress protection: IP66
  • Lifespan: 50,000hrs
  • Warranty: 3 years

Light Spectrum

PRO-LUXX SERIES

1000W HPS FIXTURE &

SELF-REFLECTING BULB

The World’s Highest Yielding HPS Light Fixture w/ 99.9% Reflection Rate

KEY FEATURES
  • Dimmable
  • Controllable
  • Safest HPS Ballast
  • Driver efficiency > 95%
  • 10-15% more light output
  • Minimal shadow cast in greenhouses
  • 3 year warranty for the ballast
  • 20,000 hours warranty for the light bulb
  • 99.9% Efficient Built-in Pure Silver Reflector
BUILT-IN PROTECTIONS
  • Short circuit protection
  • Open circuit protection
  • Ignition failure protection
  • Thermal protection
  • End of Lamp Life (EOL) protection
MEASUREMENTS

Dimensions: 20.9in x 7.4in x 9.6in (LxWxH)


Weight: 7.72lbs

DOWNLOADABLE PDF FILES

PRO-LUXX SERIES

1000W HPS FIXTURE &

SELF-REFLECTING BULB

The World’s Highest Yielding HPS Light Fixture w/ 99.9% Reflection Rate

click to enlarge

Model Number: H1-1000EY1W-GID

  • Input Voltage: 240V - 277V
  • Input Current: 4.20A - 3.61A
  • Input Power: 1055W - 1045W
  • Power Factor: >0.99
  • Total Harmonic Distortion: <5%
  • Frequency: 50/60 Hz
  • Ignition Voltage: 5KV
  • Temperature ambient: -4 -- 104 F
  • AC Cord Length: 15 feet
  • Plug Type: Pigtail
  • Mounting Hardware: C-bracket

efinity Pro-Luxx Series 1000W Fixture
  • 1000W Digital Ballast
  • Silver-Coated Lamp 99.99% Reflection Rate
  • 9ft German Wieland power cord with pigtail
  • C-Bracket Mounting Hardware
  • User Manual

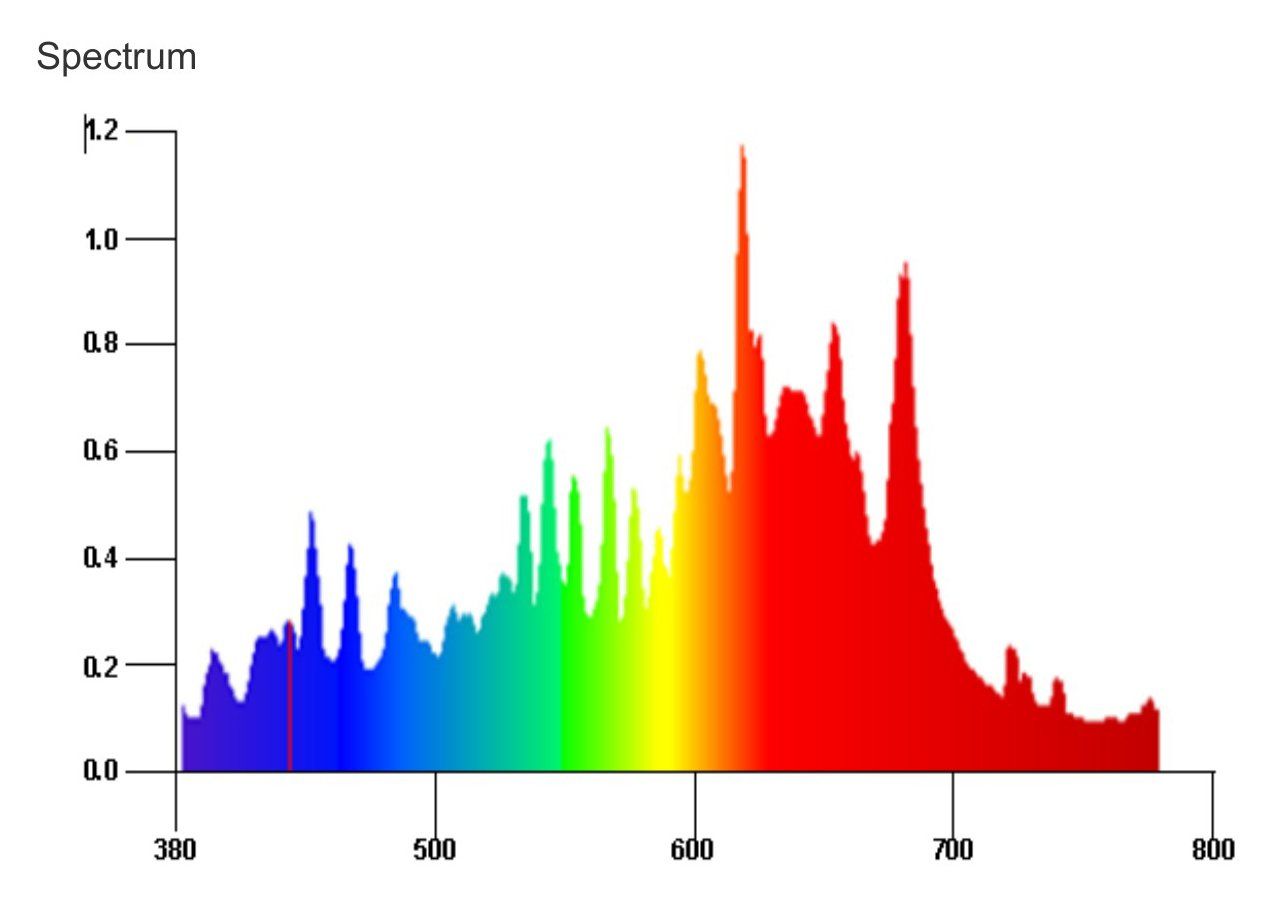

Light Spectrum

BLACK SERIES

1000W DE HPS

CLOSED REFLECTOR

BLACK SERIES

1000W DE HPS

CLOSED REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

click to enlarge

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

KEY FEATURES
  • Dimmable
  • Controllable
  • 96% reflection rate w/ replaceable reflector
  • Includes 1 efinity high frequency 400V DE bulb which produces 10% to 25% more output than traditional HPS bulbs and is the only DE bulb w/ built-in Ignitor
  • efinity DE bulb warranty: 10,000 hours
  • Completely sealed housing w/ RJ11 plug
  • No moving parts
MEASUREMENTS

Dimensions: 9.13in x 7.44in x 23.7in (LxWxH)


Weight: 9.66 lbs

DOWNLOADABLE PDF FILES

Model Number: H1-1000CY1W-GIJ

  • Input Voltage: 110/208/220/240V
  • Input Current: 9.09/4.81/4.55/4.17A
  • Input Power: 1055W / 1050W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC C14
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Nema 5-15

Model Number: H1-1000277CY1W-GIJ

  • Input Voltage: 277V
  • Input Current: 3.61A
  • Input Power: 1045W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: Wieland
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Wieland Pigtail

Model Number: H1-1000347K5W-GIA

  • Input Voltage: 347V
  • Input Current: 3.17A
  • Input Power: 1040W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: Wieland
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Wieland Pigtail

Model Number: H1-1000480Y1W-GID

  • Input Voltage: 480V
  • Input Current: 2.10A
  • Input Power: 1040W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: Wieland
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Wieland Pigtail

efinity Black Series Light Fixture Master Carton includes:
  • One efinity All-in-One Digital Ballast
  • efinity Double End Pro bulb (Customer can request package without bulb)
  • 9ft power cord: 120 / 240V with Plug, 277 / 347 / 480V with pigtail
  • One T-splitter for plug and play installation
  • 2 RJ11 controller cables
  • User manual
Light Spectrum

BLACK SERIES

1000W DE HPS

OPEN REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

KEY FEATURES
  • Dimmable
  • Controllable
  • 96% reflection rate w/ replaceable reflector
  • Includes 1 efinity high frequency 400V DE bulb which produces 10% to 25% more output than traditional HPS bulbs and is the only DE bulb w/ built-in Ignitor
  • efinity DE bulb warranty: 10,000 hours
  • Completely sealed housing w/ RJ11 plug
  • No moving parts
MEASUREMENTS

Dimensions: 9.13in x 7.44in x 23.7in (LxWxH)


Weight: 9.66 lbs

DOWNLOADABLE PDF FILE

BLACK SERIES

1000W DE HPS

OPEN REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

click to enlarge

H1-1000CY1W-GIJ-O

  • Input Voltage: 110/208/220/240V
  • Input Current: 9.09/4.81/4.55/4.17
  • Input Power: 1055W / 1050W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Pigtail

efinity Black Series Light Fixture Master Carton includes:
  • One efinity All-in-One Digital Ballast
  • efinity Double End Pro bulb (Customer can request package without bulb)
  • 9ft power cord: 120 / 240V with Pigtail
  • One T-splitter for plug and play installation
  • 2 RJ11 controller cables
  • User manual
Light Spectrum

COMMERCIAL SERIES

1000W DE HPS

CLOSED REFLECTOR

COMMERCIAL SERIES

1000W DE HPS

CLOSED REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

click to enlarge

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

KEY FEATURES
  • Dimmable
  • Controllable
  • 96% reflection rate w/ replaceable reflector
  • Includes 1 efinity high frequency 400V DE bulb which produces 10% to 25% more output than traditional HPS bulbs and is the only DE bulb w/ built-in Ignitor
  • efinity DE bulb warranty: 10,000 hours
  • Completely sealed housing w/ RJ11 plug
  • 9ft German Weiland power connection
MEASUREMENTS

Dimensions: 9.13in x 7.44in x 23.7in (LxWxH)


Weight: 9.66 lbs

DOWNLOADABLE PDF FILES

Model Number: H1-1000CY1W-GI19

  • Input Voltage: 110/208/220/240V
  • Input Current: 9.09/4.81/4.55/4.17A
  • Input Power: 1055W / 1050W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Wieland Pigtail

efinity Commercial Series Light Fixture Master Carton includes:
  • One efinity All-in-One Digital Ballast
  • efinity Double End Pro bulb (Customer can request package without bulb)
  • 9ft German Weiland power cord with Pigtail
  • One T-splitter for plug and play installation
  • 2 RJ11 controller cables
  • User manual


Light Spectrum

COMMERCIAL SERIES 1000W DE HPS

OPEN REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

KEY FEATURES
  • Dimmable
  • Controllable
  • 96% reflection rate w/ replaceable reflector
  • Includes 1 efinity high frequency 400V DE bulb which produces 10% to 25% more output than traditional HPS bulbs and is the only DE bulb w/ built-in Ignitor
  • efinity DE bulb warranty: 10,000 hours
  • Completely sealed housing w/ RJ11 plug
  • 9ft German Weiland power connection
MEASUREMENTS

Dimensions: 9.13in x 7.44in x 23.7in (LxWxH)


Weight: 9.66 lbs

DOWNLOADABLE PDF FILES

COMMERCIAL SERIES 1000W DE HPS

OPEN REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

click to enlarge

H1-1000CY1W-GI18

  • Input Voltage: 110/208/220/240V
  • Input Current: 9.09/4.81/4.55/4.17A
  • Input Power: 1055W / 1050W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Wieland Pigtail

efinity Commercial Series Light Fixture Master Carton includes:
  • One efinity All-in-One Digital Ballast
  • efinity Double End Pro bulb (Customer can request package without bulb)
  • 9ft German Weiland power cord with Pigtail
  • One T-splitter for plug and play installation
  • 2 RJ11 controller cables
  • User manual
Light Spectrum

BLACK SERIES 315W CMH

BLACK SERIES 315W CMH

The Industry’s Highest Efficiency/Lowest Frequency, Daisy-Chainable,  Controllable, and Dimmable  CMH Grow Light Fixture

click to enlarge

The Industry’s Highest Efficiency/Lowest Frequency, Daisy-Chainable,  Controllable, and Dimmable  CMH Grow Light Fixture

KEY FEATURES
  • Daisy chain up 8 units
  • Runs GreenPower CDM-T 315W Lamps
  • No acoustic resonance
  • Low Frequency, High Efficiency electronic ballast
  • Lower harmonic distortion
  • High output and improved spectrum
  • Driver efficiency at full power: 95-96%
BUILT-IN PROTECTIONS
  • Short circuit protection
  • Open circuit protection
  • Ignition failure protection
  • Thermal protection
  • End of Lamp Life (EOL) protection
MEASUREMENTS

Dimensions: 22.36in x 9.29in x 4.70in (LxWxH)


Weight: 9.16lbs

DOWNLOADABLE PDF FILES

Model Number: H1-315CS1B-WNA

  • Input Voltage: 110/208/220/240V
  • Input Current: 3.12/1.65/1.56/1.43A
  • Input Power: 343W
  • Power Factor: >0.95
  • Frequency: 50 - 60 Hz
  • Total Harmonic Distortion: < 15%
  • Ignition Voltage: 5KV
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC C14
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Nema L5-15

Model Number: H1-315277S1B-WNA

  • Input Voltage: 277V
  • Input Current: 1.30A
  • Input Power: 343W
  • Power Factor: >0.95
  • Frequency: 50 - 60 Hz
  • Total Harmonic Distortion: < 15%
  • Ignition Voltage: 5KV
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC C14
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: NEMA L7-15P

efinity CMH 315W Light Fixture Master Carton includes:
  • One efinity 315W Digital Ballast
  • 9ft power cord:
  • 110/240V with plug
  • 277V buildin power cord
  • User manual
Light Spectrum

BLACK SERIES 630W CMH

The Industry’s Highest Efficiency/Lowest Frequency, Daisy-Chainable,  Controllable, and Dimmable  CMH Grow Light Fixture

KEY FEATURES
  • Daisy chain up 4 units
  • Runs GreenPower CDM-T 315W Lamps
  • No acoustic resonance
  • Low Frequency, High Efficiency electronic ballast
  • Lower harmonic distortion
  • High output and improved spectrum
  • Driver efficiency at full power: 95-96%
BUILT-IN PROTECTIONS
  • Short circuit protection
  • Open circuit protection
  • Ignition failure protecion
  • Thermal protection
  • End of Lamp Life(EOL)protection
MEASUREMENTS

Dimensions: 20.1in x 9.48in x 5.7in (LxWxH)


Weight: 13.23 lbs

DOWNLOADABLE PDF FILE

BLACK SERIES 630W CMH

The Industry’s Highest Efficiency/Lowest Frequency, Daisy-Chainable,  Controllable, and Dimmable  CMH Grow Light Fixture

click to enlarge

Model Number: H2-315CS1B-WNA

  • Input Voltage: 110/208/220/240V
  • Input Current:  5.73/3.03/2.86/ 2.83A
  • Input power at 100%: 343W
  • Power Factor: >0.95
  • Total Harmonic Distortion: < 10%
  • Power inlet: IEC C14
  • Plug type: Nema L6-15
  • In Rush current: ≤ 50Amps
  • AC Cord Length: 9ft
  • Temperture ambient: -20 ~40℃ / -4 ~104℉

Model Number: H2-315277S1B-WNA

  • Input Voltage: 277V
  • Input Frequency: 50 - 60 Hz
  • Input Current: 2.5A
  • Input Power at 100%: 343W
  • Power Factor: >0.95
  • Total Harmonic Distortion: < 10%
  • Power Inlet: IEC C14
  • Plug Type: NEMA L7-15P
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Temperature ambient: -4 -- 104 F

efinity CMH 630W Light Fixture Master Carton includes:
  • One efinity All-in-One Digital Ballast
  • 9ft power cord:
  • 110/240V with plug
  • 277V built-in power cord
Light Spectrum

efinity PRO

1000W DE

HPS & MH BULBS

efinity PRO

1000W DE

HPS & MH BULBS

1000W DE HPS & MH Bulbs with Proprietary Iginition & Enriched  Clear Crystal Quartz producing PPF of 2,100 & 148,000 Lumens

click to enlarge

1000W DE HPS & MH Bulbs with Proprietary Iginition & Enriched  Clear Crystal Quartz producing PPF of 2,100 & 148,000 Lumens

PERFORMANCE
  • Lamp Wattage: 1000 W
  • Lamp Current: 4 A
  • Lamp Voltage: 250 V
  • Initial Lumens: 148,000 lumens
  • Lumen/Watt: 148 lumens
  • CRI: 28.1 Ra8
  • PPF: 2100 umlo-s/m2
  • Color Temperature: 2000 K
  • Life TIme: 20,000 hours
SPECIFICATIONS
  • Overall Length: 390 mm (15.35")
  • Glass Base to Base: 270 mm (10.63")
  • Glass Jacket: 32 0mm (12.6")
  • Weight: 128 g (~.28lb)
  • Socket Pulse Rating: >5 kva
  • Fixture Rating: Open/Close
  • Burning Position: Horizontal ±15 degrees
  • Operating Wattage: 1000 W
 DOWNLOADABLE PDF FILES

USHIO 315W 3000K CMH Bulb Flowering

efinity & Ushio 315W CMH Bulbs Available in 3000 and 4200 Color Temperatures

PERFORMANCE
  • Lamp Wattage: 315 W
  • Lamp Current: 3.15 A
  • Lamp Voltage: 100 V
  • Initial Lumens: 3,1500 lumens
  • Lumen/Watt: 100 lumens
  • CRI: 28.1 Ra8
  • Color Temperature: 3000K / 4200K
  • Life TIme: 15,000 hours


RELATED PRODUCTS
DOWNLOADABLE PDF FILES

efinity & USHIO 315W CMH BULBS

efinity & Ushio 315W CMH Bulbs Available in 3000 and 4200 Color Temperatures

click to enlarge

Product No. 5002536

  • Light Output (Lumens @ 100 Hours): 33,000
  • Lumens per Watt: 110
  • AVG. LIFE (H): 15,000
  • MOL (MM): 193
  • BURN POSITION: BU ±90°
  • LAMP VOLTAGE: 100V
  • IGNITION VOLTAGE: 4KV-5KV
  • WARM UP TIME: 3 Minutes
  • RE-IGNITION TIME: 6-8 Minutes
  • BULB TYPE: T12
  • DIAMETER (MM): 38
  • $BALLAST: C182 / O or Electronic
  • BASE: PGZX18

Product No. 5002537

  • Light Output (Lumens @ 100 Hours): 32,000
  • Lumens per Watt: 100
  • AVG. LIFE (H): 15,000
  • MOL (MM): 193
  • BURN POSITION: BU ±90°
  • LAMP VOLTAGE: 100V
  • IGNITION VOLTAGE: 4KV-5KV
  • WARM UP TIME: 3 Minutes
  • RE-IGNITION TIME: 6-8 Minutes
  • BULB TYPE: T12
  • DIAMETER (MM): 38
  • $BALLAST: C182 / O or Electronic
  • BASE: PGZX18

click to enlarge

3000K Bulb

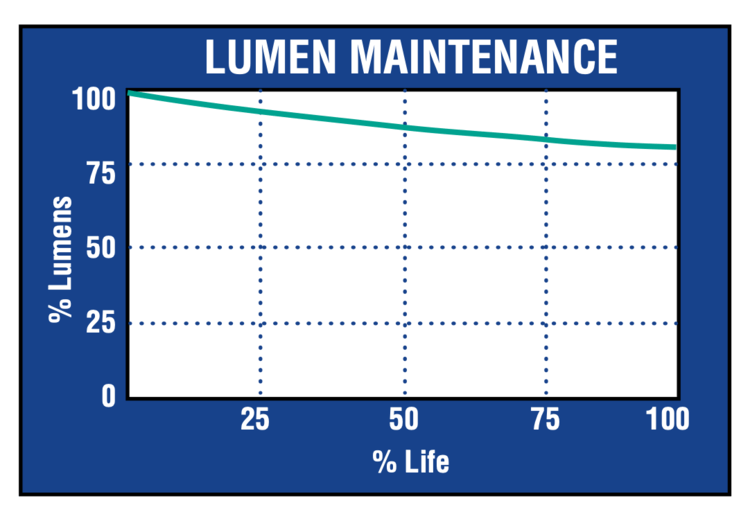

4200K Bulb

MASTER CONTROLLER LED, HPS, & CMH

MASTER CONTROLLER LED, HPS, & CMH

Two Channel Master Controller with Capacity for up to 75 efinity Fixtures per Channel

click to enlarge

Two Channel Master Controller with Capacity for up to 75 efinity Fixtures per Channel

KEY FEATURES
  • Auto-dim at set temperature.
  • Auto-shutdown at set temperature.
  • Sunrise / sunset period.
  • Easy and safe installation.
  • Protected against short-circuits.
  • Double temperature safety features.
  • Suitable for all efinity / Megaphoton HPS/CMH/LED fixtures with controller ports.
  • Maximum Number of lighting fixtures: 150 units.
MEASUREMENTS

Dimensions: 4.13in x 3.40in x 1.35in (LxWxH)


Weight: 0.55 lbs

DOWNLOADABLE PDF FILE

Model Number: ZTKZQ-02

  • Input Voltage: Adapter: 100V-240V AC50/60Hz-5V DC
  • Select Ballast type: HPS / CMH / LED
  • Set output Level: HPS : 25-115% / LED: 0-100%
  • Outputs: 2
  • Temperature sensors: 2
  • Number of ballasts per output: 50 units
  • Total Number of Ballasts: 100 units
  • External Contactor Modules: 2 optional
