    SUPERSTAR GEN II

    660W INDOOR LED

    SUPERSTAR GEN II

    660W INDOOR LED

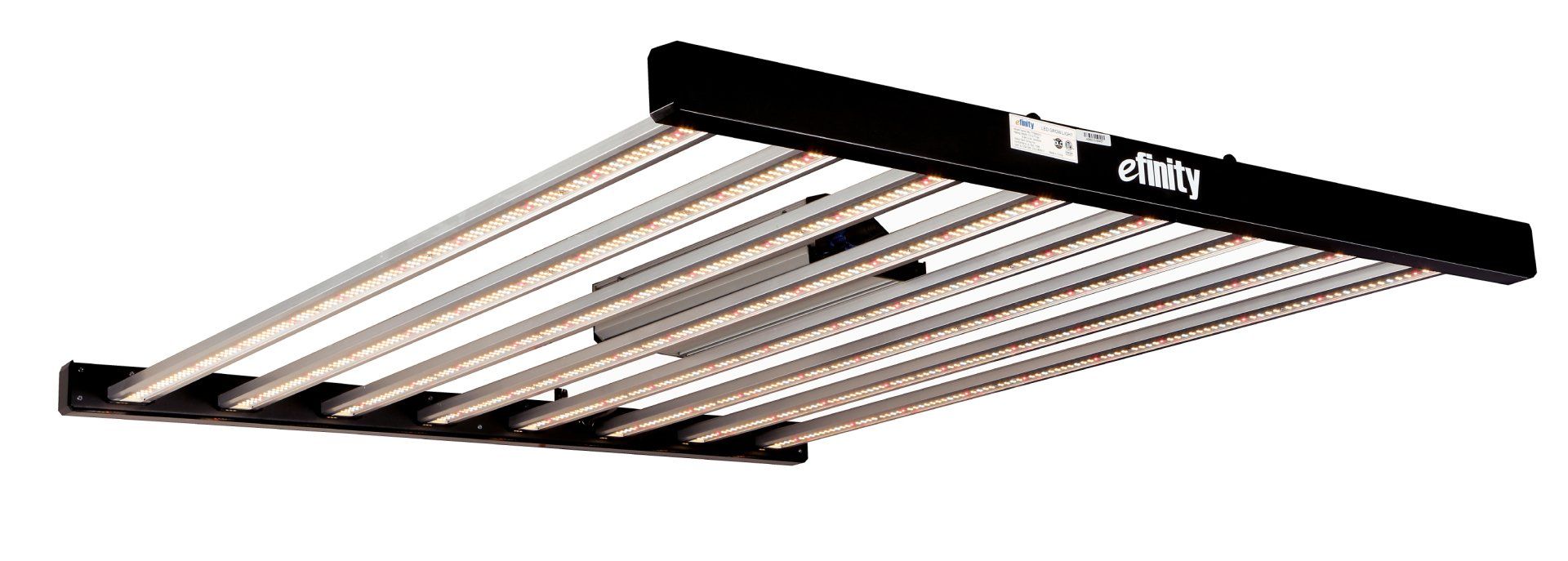

    The World’s Top-Selling High PPF/Efficacy Heavy-Duty Full Spectrum 8-bar Indoor LED Grow Light Fixture for All Stages

    click to enlarge

    The World’s Top-Selling High PPF/Efficacy Heavy-Duty Full Spectrum 8-bar Indoor LED Grow Light Fixture for All Stages

    KEY FEATURES
    • Full Spectrum LED light fixture for all stages
    • Daisy-Chain up to 6 units
    • Dimmability from 0 to 100%
    • Philips Lumileds & Samsung LED Chips
    • PPF 1848 μmol/s and Efficacy 2.8 μmol/J
    • Certified with ETL and DLC Listed (Megaphoton)
    • 5 year warranty on ballast
    • 50,000 hour warranty on LEDs
    MEASUREMENTS

    Dimensions: 46.7in x 43.3in x 5.5in (LxWxH)


    Weight: 34 lbs

    DOWNLOADABLE PDF FILES

    Model Number: ML-TYU66006

    • Input Voltage: 110/208/220/240/277V
    • Input Current: 6.0/3.17/3.0/2.75/2.38A
    • Input Frequency: 50 / 60Hz
    • Power consumption: 660W
    • Power factor: >0.90
    • Ingress protection: IP66
    • Dimming: 0-10V Controllable
    • Dim Switch: 20%/40%/60% /80%/100%/Ext
    • Max Coverage at 24” : 6X6ft
    • Core Coverage at 24”: 5X5ft
    • Operational Phase: Bloom phase
    • BTUs/Hour: 1,577

    Model Number: ML-TYU66009

    • Input Voltage: 240/277/347/480V
    • Input Current: 2.75/2.38/1.90/1.38A
    • Input Frequency: 50 / 60Hz
    • Power consumption: 660W
    • Power factor: >0.9
    • Ingress protection: IP66
    • Dimming: 0-10V Controllable
    • Max Coverage at 24” : 6X6ft
    • Core Coverage at 24”: 5X5ft
    • Operational Phase: Bloom phase
    • BTUs/Hour: 1,577

    Model Number: ML-TYN66011 (ELV-Vege)

    • Input Voltage: 208/220/240/277/347/480V
    • Input Current: 317/3.0/2.75/2.38/1.90/1.38A
    • Input Frequency: 50 / 60Hz
    • Power consumption: 660W
    • Power factor: >0.9
    • PPF: 1780μmol-s / m2
    • Efficacy: >2.7μmol-s/m2
    • Ingress protection: IP66
    • Dimming: 0-10V Controllable
    • Max Coverage at 24” : 6X6ft
    • Core Coverage at 24”: 5X5ft
    • Operational Phase: Veg phase
    • BTUs/Hour: 1,577
