    BLACK SERIES 315W CMH

    BLACK SERIES 315W CMH

    The Industry’s Highest Efficiency/Lowest Frequency, Daisy-Chainable,  Controllable, and Dimmable  CMH Grow Light Fixture

    click to enlarge

    The Industry’s Highest Efficiency/Lowest Frequency, Daisy-Chainable,  Controllable, and Dimmable  CMH Grow Light Fixture

    KEY FEATURES
    • Daisy chain up 8 units
    • Runs GreenPower CDM-T 315W Lamps
    • No acoustic resonance
    • Low Frequency, High Efficiency electronic ballast
    • Lower harmonic distortion
    • High output and improved spectrum
    • Driver efficiency at full power: 95-96%
    BUILT-IN PROTECTIONS
    • Short circuit protection
    • Open circuit protection
    • Ignition failure protection
    • Thermal protection
    • End of Lamp Life (EOL) protection
    MEASUREMENTS

    Dimensions: 22.36in x 9.29in x 4.70in (LxWxH)


    Weight: 9.16lbs

    Model Number: H1-315CS1B-WNA

    • Input Voltage: 110/208/220/240V
    • Input Current: 3.12/1.65/1.56/1.43A
    • Input Power: 343W
    • Power Factor: >0.95
    • Frequency: 50 - 60 Hz
    • Total Harmonic Distortion: < 15%
    • Ignition Voltage: 5KV
    • Temperature ambient: -4 -- 104 F
    • Power Inlet: IEC C14
    • In Rush Current: < 50Amps
    • AC Cord Length: 9ft
    • Plug Type: Nema L5-15

    Model Number: H1-315277S1B-WNA

    • Input Voltage: 277V
    • Input Current: 1.30A
    • Input Power: 343W
    • Power Factor: >0.95
    • Frequency: 50 - 60 Hz
    • Total Harmonic Distortion: < 15%
    • Ignition Voltage: 5KV
    • Temperature ambient: -4 -- 104 F
    • Power Inlet: IEC C14
    • In Rush Current: < 50Amps
    • AC Cord Length: 9ft
    • Plug Type: NEMA L7-15P

    efinity CMH 315W Light Fixture Master Carton includes:
    • One efinity 315W Digital Ballast
    • 9ft power cord:
    • 110/240V with plug
    • 277V buildin power cord
    • User manual

    click to enlarge

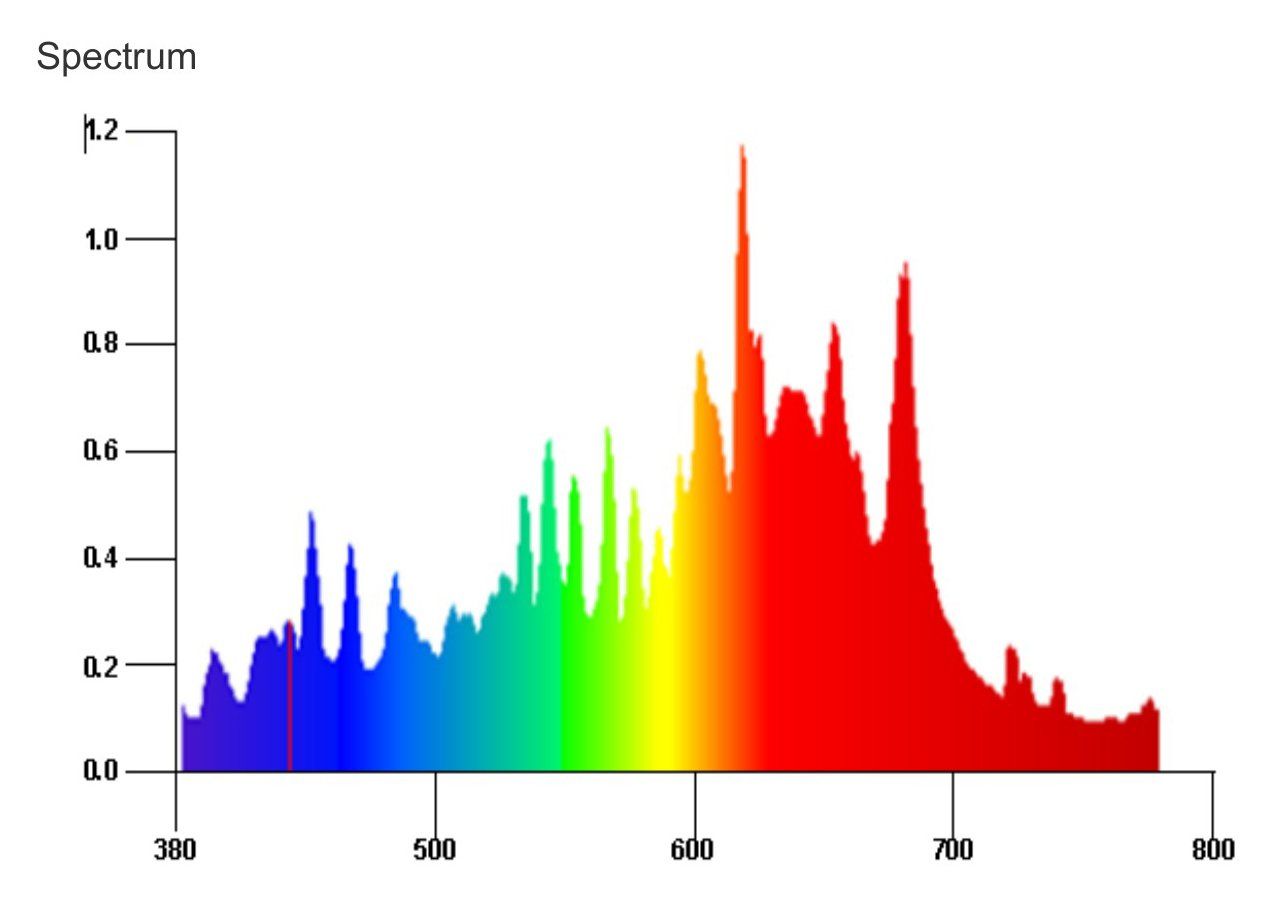

    Light Spectrum
