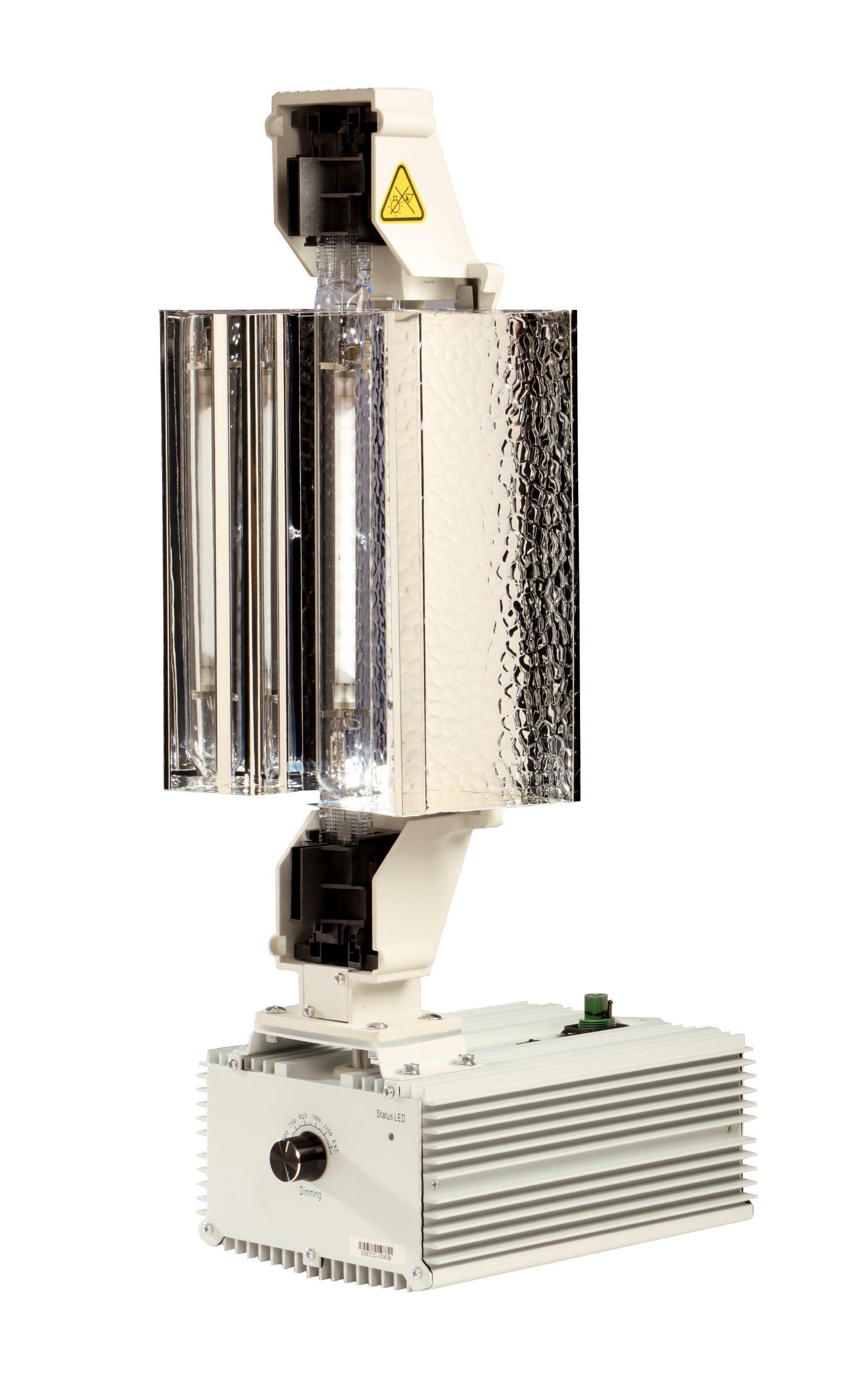

COMMERCIAL SERIES 1000W DE HPS

OPEN REFLECTOR

COMMERCIAL SERIES 1000W DE HPS

OPEN REFLECTOR

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

click to enlarge

The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

KEY FEATURES
  • Dimmable
  • Controllable
  • 96% reflection rate w/ replaceable reflector
  • Includes 1 efinity high frequency 400V DE bulb which produces 10% to 25% more output than traditional HPS bulbs and is the only DE bulb w/ built-in Ignitor
  • efinity DE bulb warranty: 10,000 hours
  • Completely sealed housing w/ RJ11 plug
  • 9ft German Weiland power connection
MEASUREMENTS

Dimensions: 9.13in x 7.44in x 23.7in (LxWxH)


Weight: 9.66 lbs

DOWNLOADABLE PDF FILES

H1-1000CY1W-GI18

  • Input Voltage: 110/208/220/240V
  • Input Current: 9.09/4.81/4.55/4.17A
  • Input Power: 1055W / 1050W
  • Power Factor: >0.99
  • Frequency: 50 - 60 Hz
  • Operation Frequency: 120 KHz
  • THD: < 10%
  • Temperature ambient: -4 -- 104 F
  • Power Inlet: IEC
  • In Rush Current: < 50Amps
  • AC Cord Length: 9ft
  • Plug Type: Wieland Pigtail

efinity Commercial Series Light Fixture Master Carton includes:
  • One efinity All-in-One Digital Ballast
  • efinity Double End Pro bulb (Customer can request package without bulb)
  • 9ft German Weiland power cord with Pigtail
  • One T-splitter for plug and play installation
  • 2 RJ11 controller cables
  • User manual

click to enlarge

Light Spectrum
