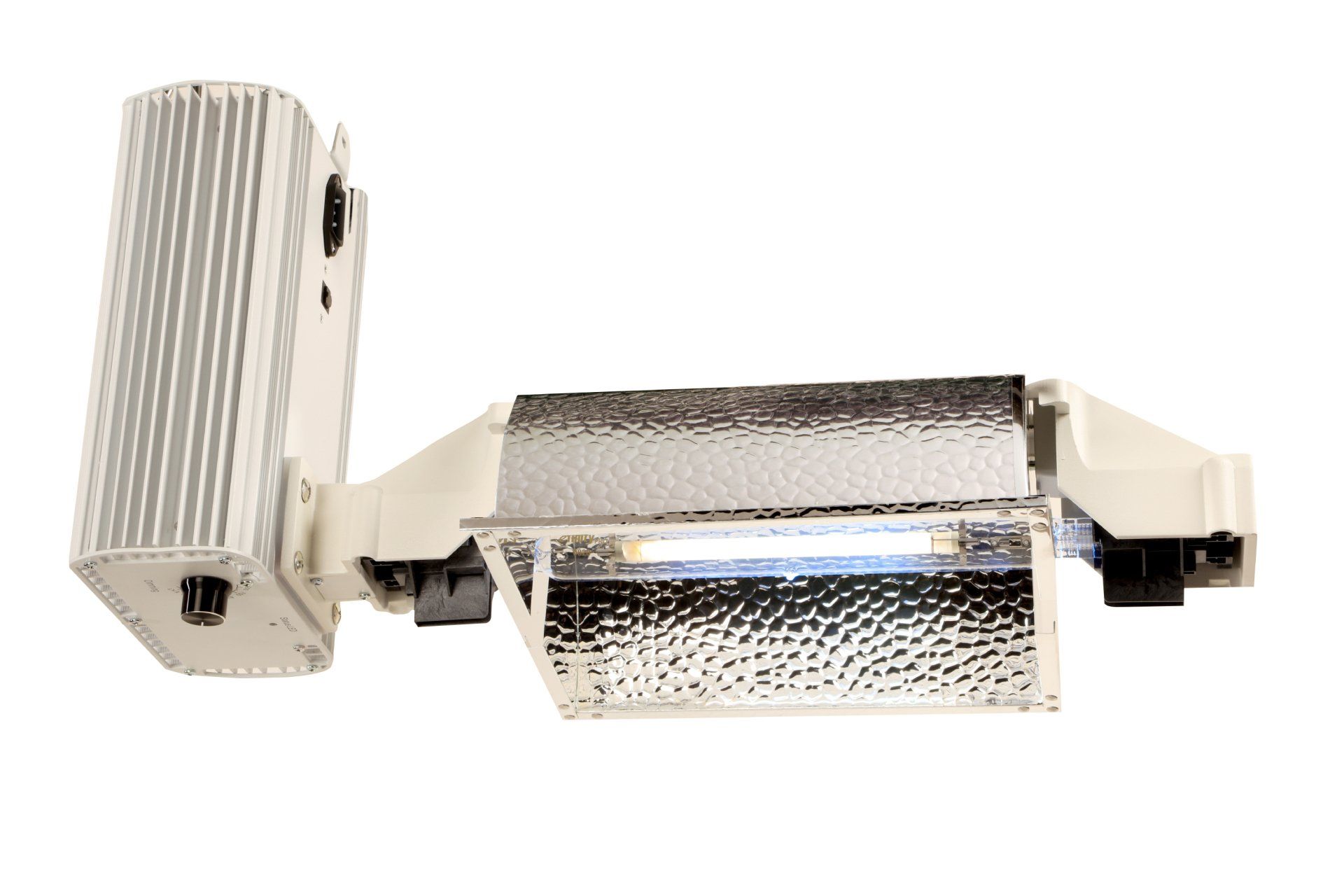

    BLACK SERIES

    1000W DE HPS

    CLOSED REFLECTOR

    BLACK SERIES

    1000W DE HPS

    CLOSED REFLECTOR

    The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

    click to enlarge

    The Industry’s Defacto Standard HPS Light Fixture We Designed & Manufactured as ODM/OEM for Virtually Every Major Brand

    KEY FEATURES
    • Dimmable
    • Controllable
    • 96% reflection rate w/ replaceable reflector
    • Includes 1 efinity high frequency 400V DE bulb which produces 10% to 25% more output than traditional HPS bulbs and is the only DE bulb w/ built-in Ignitor
    • efinity DE bulb warranty: 10,000 hours
    • Completely sealed housing w/ RJ11 plug
    • 9ft German Weiland power connection
    MEASUREMENTS

    Dimensions: 9.13in x 7.44in x 23.7in (LxWxH)


    Weight: 9.66 lbs

    DOWNLOADABLE PDF FILES

    Model Number: H1-1000CY1W-GIJ

    • Input Voltage: 110/208/220/240V
    • Input Current: 9.09/4.81/4.55/4.17A
    • Input Power: 1055W / 1050W
    • Power Factor: >0.99
    • Frequency: 50 - 60 Hz
    • Operation Frequency: 120 KHz
    • THD: < 10%
    • Temperature ambient: -4 -- 104 F
    • Power Inlet: IEC C14
    • In Rush Current: < 50Amps
    • AC Cord Length: 9ft
    • Plug Type: Nema 5-15

    Model Number: H1-1000277CY1W-GIJ

    • Input Voltage: 277V
    • Input Current: 3.61A
    • Input Power: 1045W
    • Power Factor: >0.99
    • Frequency: 50 - 60 Hz
    • Operation Frequency: 120 KHz
    • THD: < 10%
    • Temperature ambient: -4 -- 104 F
    • Power Inlet: Wieland
    • In Rush Current: < 50Amps
    • AC Cord Length: 9ft
    • Plug Type: Wieland Pigtail

    Model Number: H1-1000347K5W-GIA

    • Input Voltage: 347V
    • Input Current: 3.17A
    • Input Power: 1040W
    • Power Factor: >0.99
    • Frequency: 50 - 60 Hz
    • Operation Frequency: 120 KHz
    • THD: < 10%
    • Temperature ambient: -4 -- 104 F
    • Power Inlet: Wieland
    • In Rush Current: < 50Amps
    • AC Cord Length: 9ft
    • Plug Type: Wieland Pigtail

    Model Number: H1-1000480Y1W-GID

    • Input Voltage: 480V
    • Input Current: 2.10A
    • Input Power: 1040W
    • Power Factor: >0.99
    • Frequency: 50 - 60 Hz
    • Operation Frequency: 120 KHz
    • THD: < 10%
    • Temperature ambient: -4 -- 104 F
    • Power Inlet: Wieland
    • In Rush Current: < 50Amps
    • AC Cord Length: 9ft
    • Plug Type: Wieland Pigtail

    efinity Black Series Light Fixture Master Carton includes:
    • One efinity All-in-One Digital Ballast
    • efinity Double End Pro bulb (Customer can request package without bulb)
    • 9ft power cord: 120 / 240V with Plug, 277 / 347 / 480V with pigtail
    • One T-splitter for plug and play installation
    • 2 RJ11 controller cables
    • User manual

    click to enlarge

    Light Spectrum
