    PRO-LUXX SERIES

    1000W HPS FIXTURE &

    SELF-REFLECTING BULB

    PRO-LUXX SERIES

    1000W HPS FIXTURE &

    SELF-REFLECTING BULB

    The World’s Highest Yielding HPS Light Fixture w/ 99.9% Reflection Rate

    click to enlarge

    The World’s Highest Yielding HPS Light Fixture w/ 99.9% Reflection Rate

    KEY FEATURES
    • Dimmable
    • Controllable
    • Safest HPS Ballast
    • Driver efficiency > 95%
    • 10-15% more light output
    • Minimal shadow cast in greenhouses
    • 3 year warranty for the ballast
    • 20,000 hours warranty for the light bulb
    • 99.9% Efficient Built-in Pure Silver Reflector
    • Short circuit protection
    • Open circuit protection
    • Ignition failure protection
    • Thermal protection
    • End of Lamp Life (EOL) protection
    MEASUREMENTS

    Dimensions: 20.9in x 7.4in x 9.6in (LxWxH)


    Weight: 7.72lbs

    DOWNLOADABLE PDF FILES

    Model Number: H1-1000EY1W-GID

    • Input Voltage: 240V - 277V
    • Input Current: 4.20A - 3.61A
    • Input Power: 1055W - 1045W
    • Power Factor: >0.99
    • Total Harmonic Distortion: <5%
    • Frequency: 50/60 Hz
    • Ignition Voltage: 5KV
    • Temperature ambient: -4 -- 104 F
    • AC Cord Length: 15 feet
    • Plug Type: Pigtail
    • Mounting Hardware: C-bracket

    efinity Pro-Luxx Series 1000W Fixture
    • 1000W Digital Ballast
    • Silver-Coated Lamp 99.99% Reflection Rate

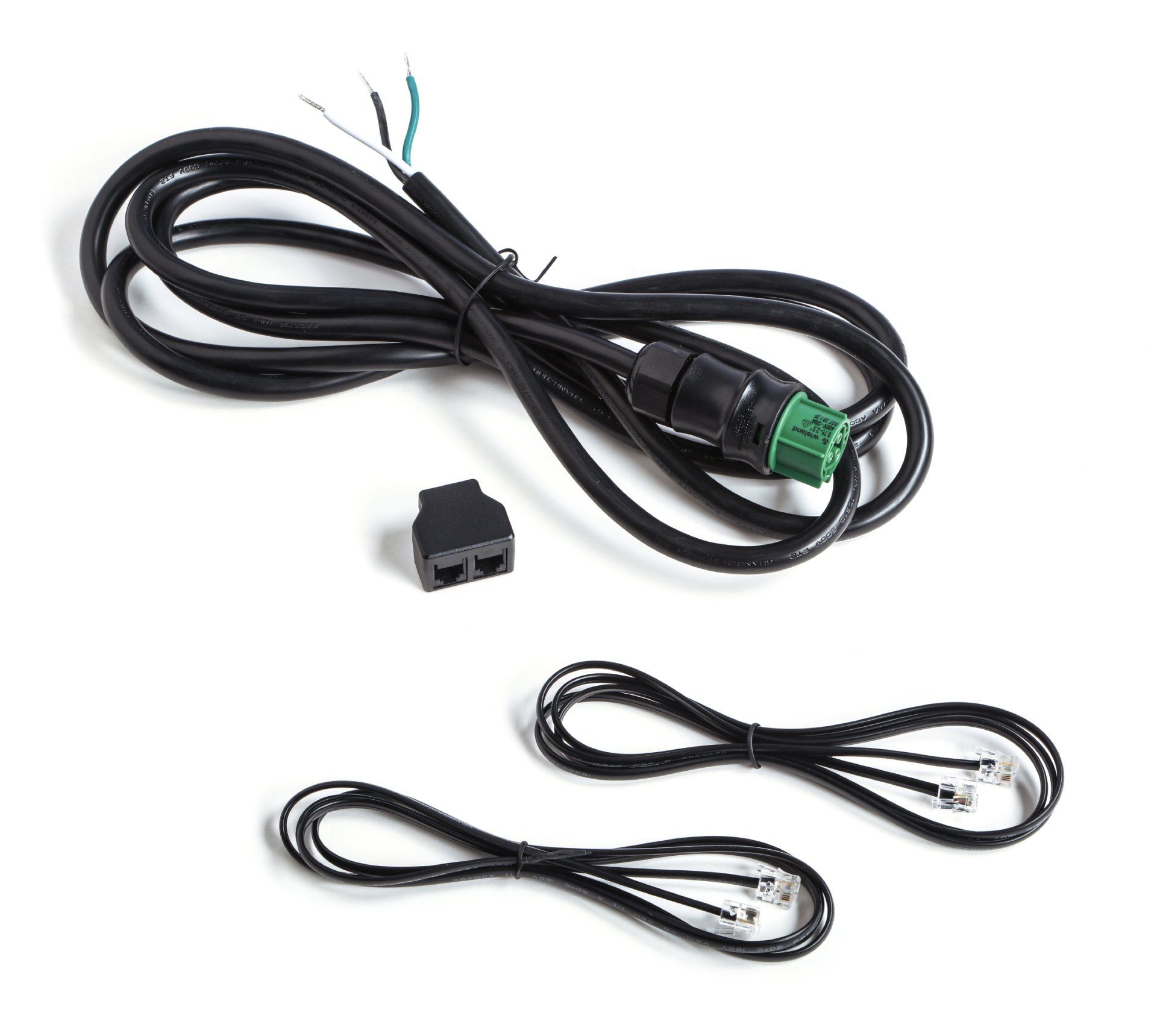

    • 9ft German Wieland power cord with pigtail
    • C-Bracket Mounting Hardware
    • User Manual

    click to enlarge

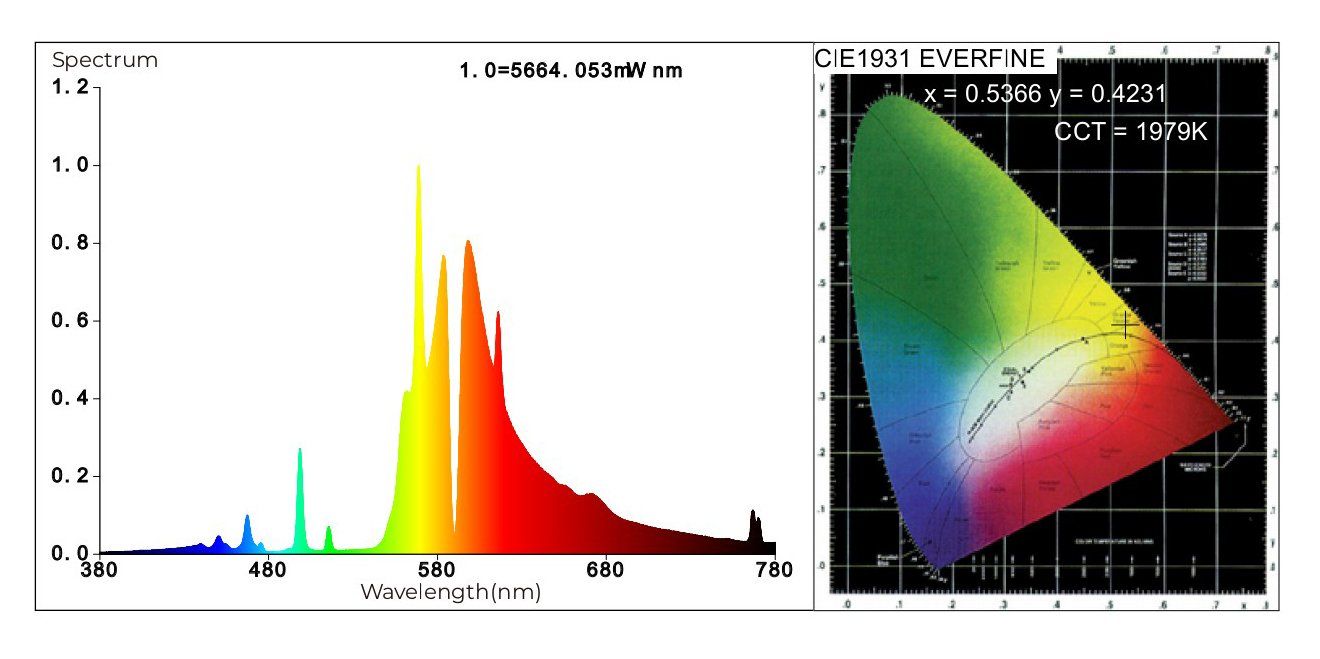

    Light Spectrum
